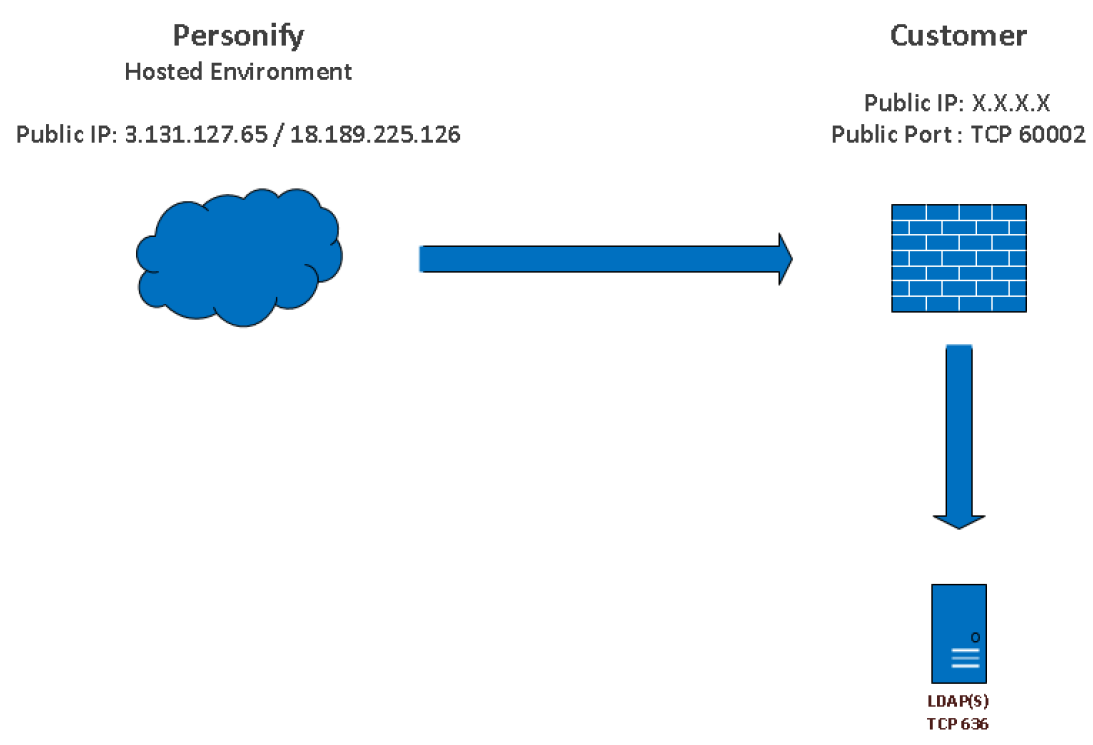

LDAP Configuration Parameters Paige Freeman May 14, 2024 12:20 Updated In order to use directory authentication with Personify, LDAP access must be provisioned on a directory server on the customer's end. In order to accomplish this, several configuration parameters are needed. Parameter Description Domain Customer's Active Directory domain name e.g., “abc123.org” LDAP Base DN Path to the default OU containing the customer users’ domain accounts e.g., “OU=employees,OU=users,DC=abc123,DC=org” Public IP Customer's public IP which the AD/LDAP server (typically the domain controller) sits behind Test User ID/Password Customer's Active Directory test account credentials to test the functionality Public Port TCP 60002 Open port 60002 externally and forward it to the local LDAP(S) port TCP 636 Personify Public IP (Prod) 3.131.127.65 Personify Public IP (Non-Prod) 18.189.225.126 To restrict LDAP traffic to only that of Personify, white‐list Personify’s public IP on your firewall
