Personal Address Structure

You can set the structure for personal addresses per customer type. For individuals, you can set the Attention Line, Company Name, Job Title, Label Name, Mail Stop, and Personal Line. For companies, subgroups, and committees, you can set the Attention Line, Label Name, and Mail Stop.

You must have access to the Settings.ApplicationSettings security application to access this page.

When the personal address structure is saved, each address label in each record within the address reflects the structure. Each record type (Individual, Company, Committee, and Subgroup) can have its own structure within a country.

The address components that must be defined include:

• Attention Line
• Company Name (for Individual only)
• Job Title (for Individual only)
• Label Name
• Mail Stop
• Personal Line (for Individual only)

To define the personal address structure:

1. From the Settings section of the left navigation menu, select Application Settings. From the Application Settings page, select Personal Address Structure from the Localization section.

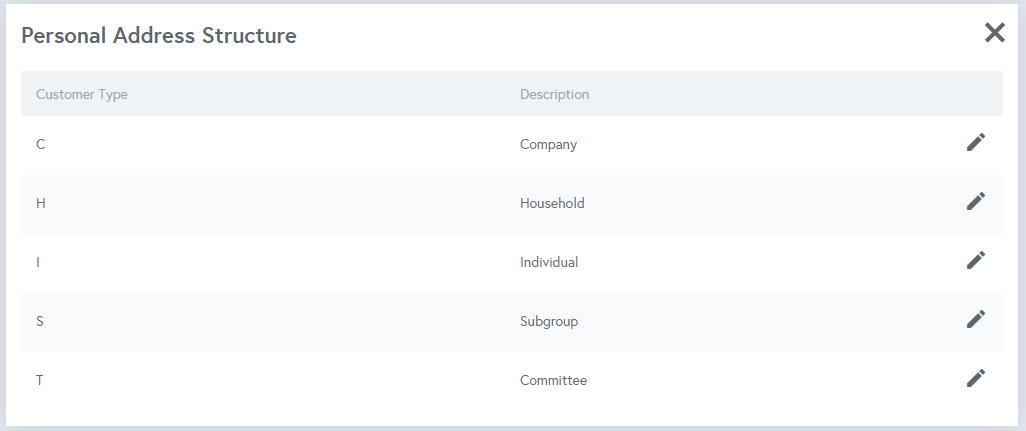

   The Personal Address Structure page displays.

2. Select the edit pencil in the grid next to the customer type you wish to edit.

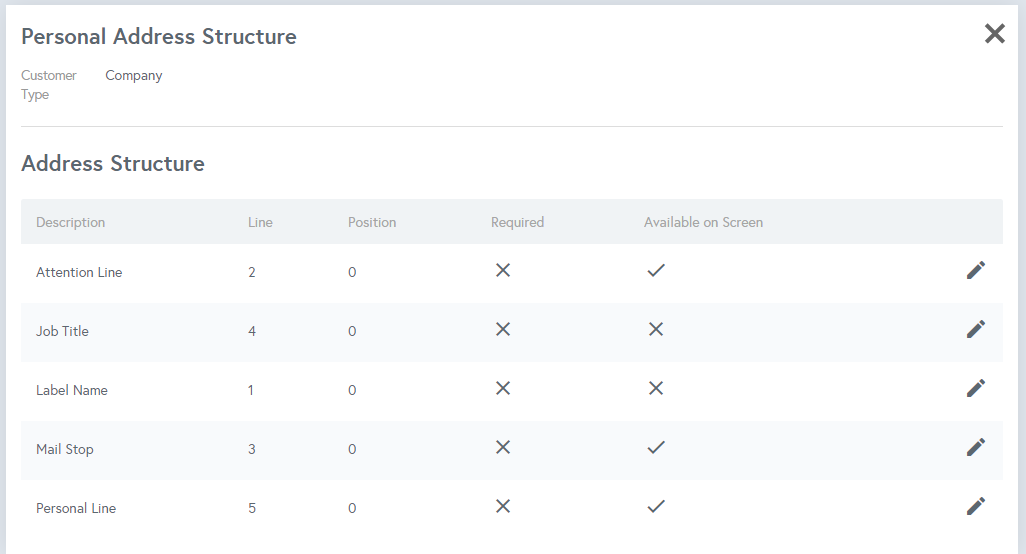

   The Personal Address Structure page for the customer type displays, as shown below.

3. Select the edit pencil in the grid next to the address structure component you wish to edit.

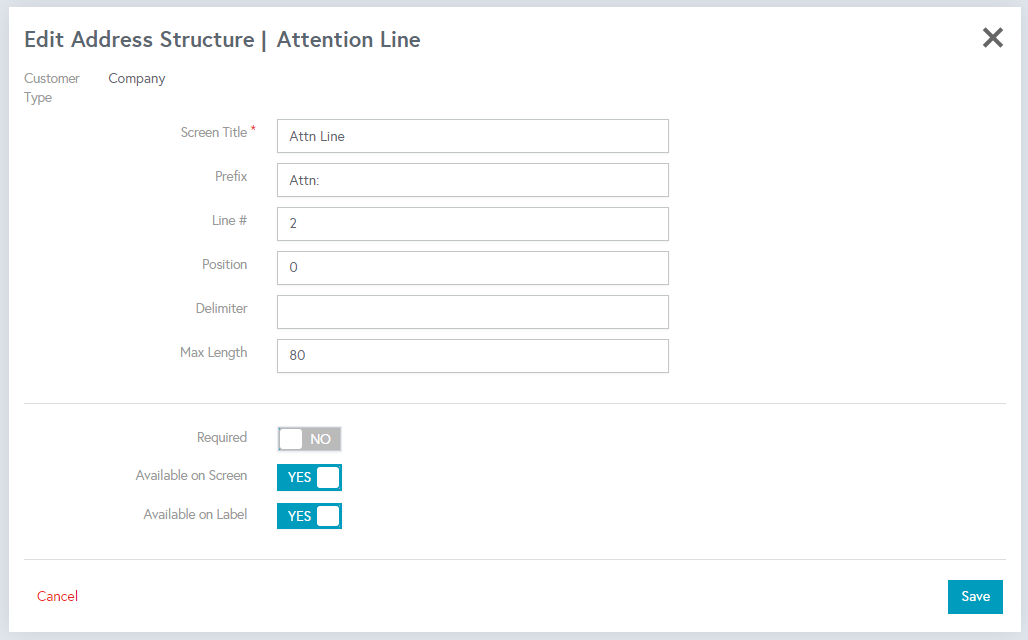

   The Edit Address Structure displays, as shown below.

4. Enter the Screen Title of the component.
5. Enter the Prefix.
6. Enter the Line # on which the component will display.
7. Enter the Position.
8. Enter the Delimiter.
9. Enter the Max Length of the component.
10. Select the appropriate toggles:
    1. Required
    2. Available on Screen
    3. Available on Label
11. Click Save.

Screen Element	Description
Screen Title	Text box. A user-defined screen title. The screen title is very similar in approach to the metadata used to allow label customizations on a form.
Prefix	Text box. A user-defined value for the prefix to the phone component. For example, you can set the ATTENTION_LINE prefix with “ATTN:”.
Line #	Text box. Indicates the position of the address component in the label view.
Position	Text box. Indicates the position of the address line.
Delimiter	Text box. For multiple line items on a single address line, you can specify an optional delimiter to insert between the address components. For example, the United States uses the “City, State Zip” format with the comma being the delimiter.
Max Length	Text box. This indicates the maximum acceptable length for the field. For example, even if the database column has a length of 80 characters, the customer may want to limit an address line to only 32 characters, which is the number that will properly print on an address label.
Required	Toggle. When checked, indicates this component is required in the address.
Available on Screen	Toggle. When checked, indicates this component appears on the address modification screen.
Available on Label	Toggle. When checked, indicates this component is used in the generation of the formatted label.
